Why Won’t my Xbox Connect to Wi-Fi? Explained & Resolve

If your Xbox is unable to detect or connect to a Wi-Fi network, you won’t be able to play any online games through Xbox Live. Additionally, the installation of new games will be interrupted, and streaming videos will not be possible.

This issue primarily occurs when the router is located too far away from the console or when there are interfering devices affecting the connection. Therefore, users should ensure that the router and Xbox are in close proximity and that there are no interfering appliances between them.

This problem can also arise if the wireless channel width is less than 20 MHz or if the MAC filtering settings are incorrect. I will explain the solutions for these issues in detail below.

1. Check Whether Xbox Live is Down

It’s possible that the issue is not with your console or router but rather with the Xbox Live service being down. In such cases, the Xbox won’t connect to Wi-Fi until the services are restored.

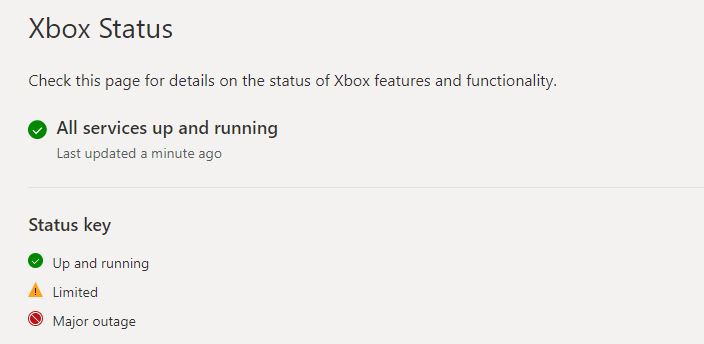

While this situation rarely occurs, it’s always a good idea to check Xbox Status page to see if everything is up and running or not.

If you see a red or yellow indicator, it means that some issues are being resolved. If the checkmark is green, then the services are running smoothly.”

2. Power Cycle Your Xbox and Router/Modem

Power cycling involves restarting both your Xbox and router. This process helps eliminate any potential connection glitches that may be causing the issue. After rebooting both devices, the problem should be resolved.

Here’s what you need to do:

  1. Unplug your router’s power cable.
  2. Press the Xbox button on your controller and hold it for a couple of seconds.
  3. The Power Center will now be opened.

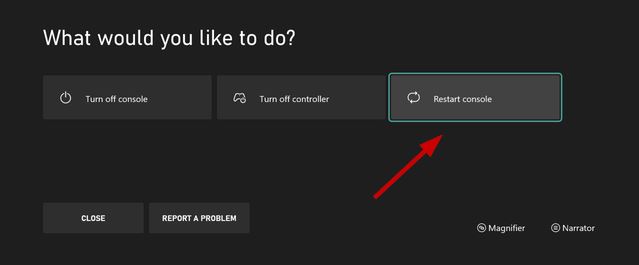

  4. Select Restart Console.

  1. Select Restart again for confirmation.
  2. Alternatively, you can press the Xbox button directly on the console and hold it for 10 seconds to power it off. After it shuts down, press the Xbox button again to restart the console.
  3. Wait for 5 minutes and plug in your router.
  4. Wait for all the lights to become normal.
  5. Now connect your Xbox to WiFi and see if it works.

3. Ensure No Interference Between the WiFi Signals and the Console

Electronic devices that broadcast wireless signals or other electromagnetic waves can be the reason why your Xbox won’t connect to WiFi. They interfere with the WiFi signals and not let it reach to devices like Xbox, mobiles, etc.

These appliances mostly include ovens, microwaves, baby monitors, wireless headsets, wireless speakers, air conditioners, walkie-talkies, CRT televisions, and more.

Secondly, there can be some objects that weaken the WiFi signals during their travel. They include concrete, mirrors, copper piping, gun safes, tiles, plaster, and others.

And lastly, if the router is too far away from the Xbox, then the console will be out of its broadcast range, and the wireless signals won’t reach it.

So, if you can relate to either of these three cases, you’d want to move your router closer to the console or vice versa. Once done, try connecting to WiFi again.

4. Check the MAC Filtering Settings

Wireless routers have a MAC filtering feature through which they can stop unauthorized network access. Now MAC filtering can also affect your console and prevent it from establishing a WiFi connection.

In this scenario, either you should find your console’s MAC address and add it to the router or disable MAC filtering temporarily. Try the latter first to identify if MAC filtering was really preventing the connection or not.

If it was, then here’s how you can configure your router to enter your Xbox’s MAC address:

  1. Open the guide by pressing the Xbox button on your controller.

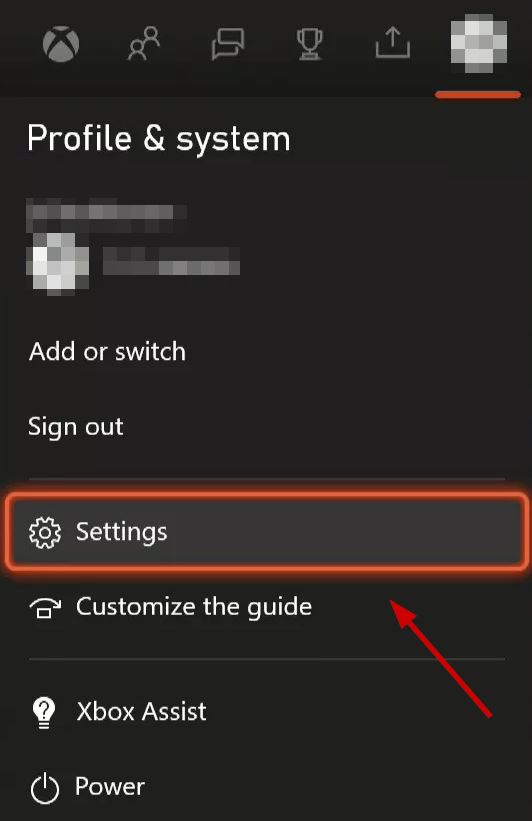

  2. Go to Profile & System and navigate to Settings.

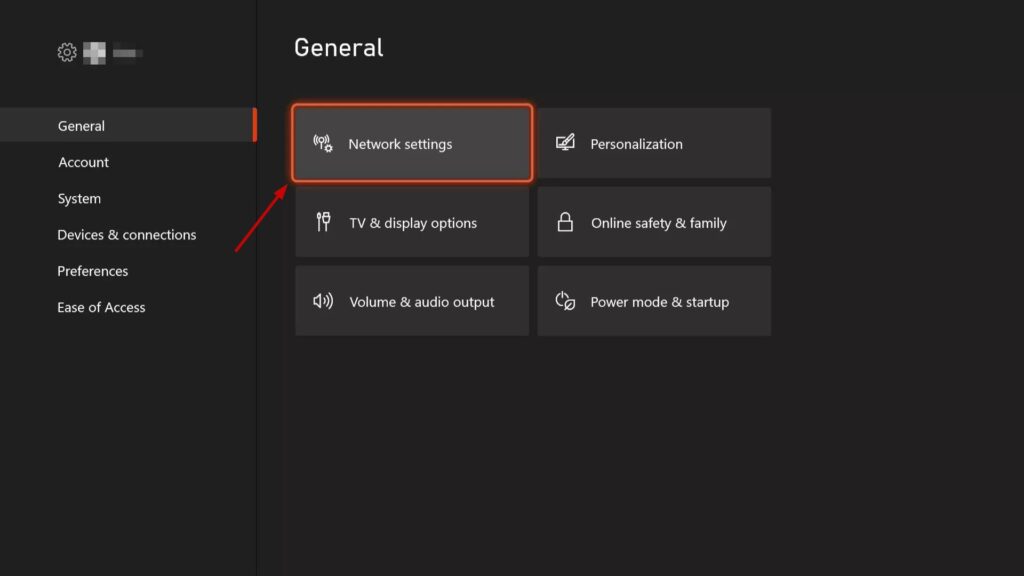

  1. Select Network Settings in the General tab.

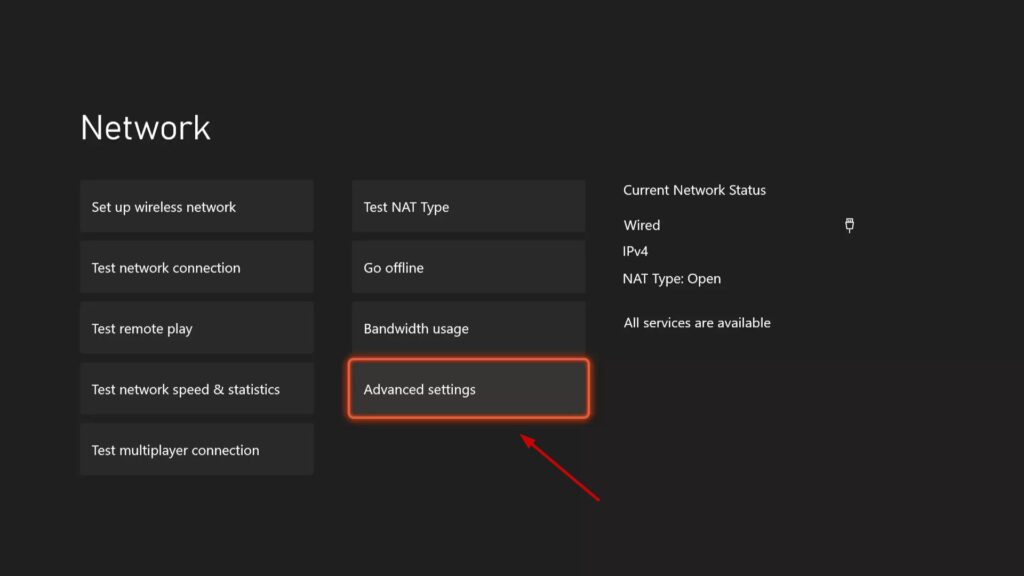

  1. Next, select Advanced Settings.

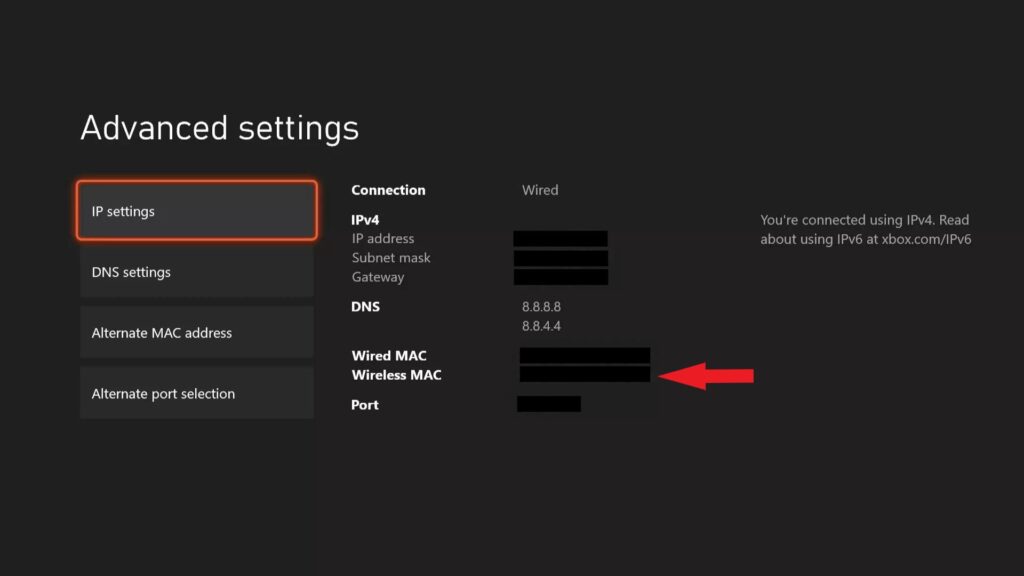

  1. Note the Wireless MAC address of your console.

  1. Now go to your router’s admin dashboard.

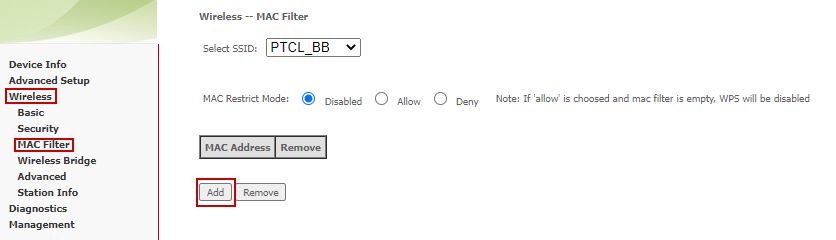

  2. Click on Wireless and select Mac Filter.

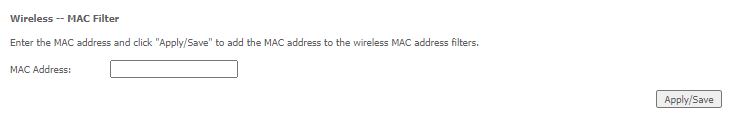

  1. Now click on add to add the new Mac address.

  1. Save the settings.
  2. Reboot your router and connect your Xbox now.

5. Set the Wireless Channel Bandwidth to 20 MHz

Usually, wireless routers have a channel bandwidth of 40 MHz or 20 MHz for broadcasting. Meanwhile, Xbox consoles generally prefer 20 MHz for connection.

So, if your router isn’t operating on 20 MHz, then you need to change its channel bandwidth.

Follow the steps below to do that:

  1. Go to your router’s admin dashboard.

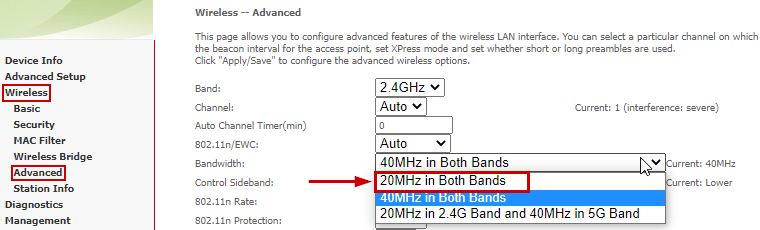

  2. Go to Wireless > Advanced.
  3. Change the Bandwidth to 20 MHz in Both Bands and save the settings.

  1. Reboot your router.
  2. Now connect the Xbox to the wireless network again.

6. Remove Third-Party Wireless Headsets

Third-party wireless headsets are another reason why your Xbox won’t connect to WiFi. These headsets are a primary cause of active interference since they and the wireless routers broadcast on the same frequencies.

To check whether your headsets are causing the issue or not, simply disconnect and power them off.

Now run the connection test as follows:

  1. Go to Profile & System.
  2. Select Settings > General.
  3. Now navigate to Network Settings.

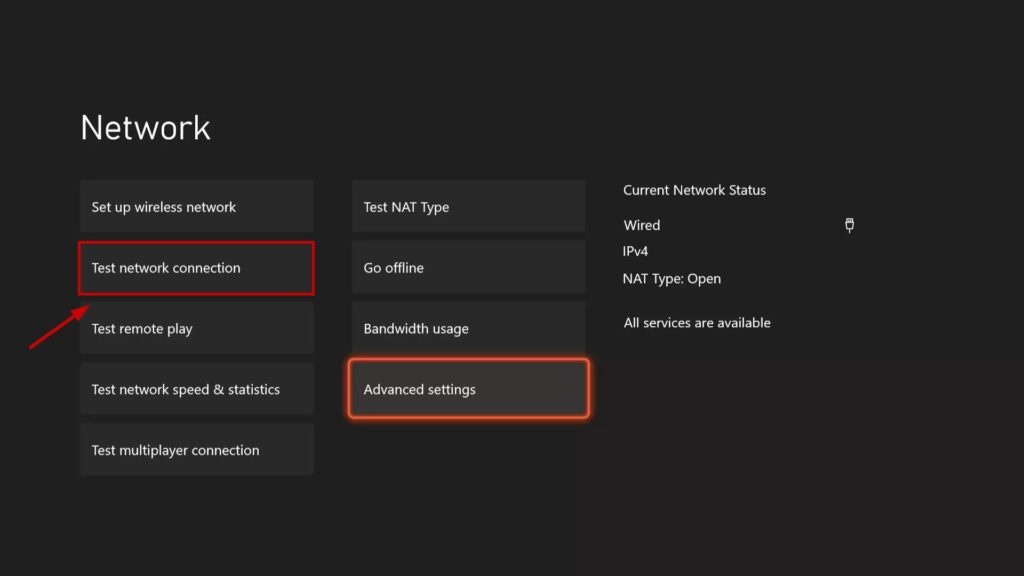

  4. Finally, select Test Network Connection.

  1. If the test is successful, you can connect to your WiFi now.

7. Use a Network Cable

Using a network cable will take the wireless connection out of the equation, and you’ll know if the signals were the problem. Simply take a network cable and connect one end to the back of your router and another to the back of your console.

Now test the connection again and see whether it is successful. If not, then unfortunately, your router is incompatible with your console.

Now you can try updating the firmware of the router from the manufacturer’s website. Once done, see if you’re able to establish the wireless connection again.

If it still doesn’t work, then you need to change your router. But before that, contact Xbox support.

8. Try Connecting Your Console to a Different Network

As a last resort, remove all the connections from your Xbox and take it to a friend’s or relative’s home. Now try to connect your console to their wireless network. If the connection gets established, then the main problem lies with your WiFi router.

You can contact your ISP (Internet Service Provider) at this point and discuss the issue with them. It could be that your router is defective, has a low connection speed, or has some wrong settings.

Do let your ISP know the methods you’ve already tried and note the solution they suggest.
