What is the AAFP connector on your motherboard? Well, to answer the question briefly, it allows you to connect the front panel audio of your PC case directly to your motherboards. This is more for convenience than anything else and it’s a standard port on most motherboards. Of course, there’s a bit more to the story here.

aafp on a motherboard
The AAFP connector

Front panel audio can vary depending on the motherboard and the case. Whether you should use it or not depends on how much you care about sound quality, cable management, and convenience. Then there’s also the case of the older legacy AC’97 audio connector.

AAFP connector on motherboard - front panel audio
AAFP port connects the Front Panel Audio of your PC case to the motherboard

Connectors can be quite confusing on motherboards, especially when it comes to the front panel connectors like the power, reset, and LED cables. Thankfully, the AAFP connector is not as elusive. Today, we’ll explain what the AAFP on motherboards is for, whether you should use it or not, and the best alternatives. Let’s get started.

What is AAFP on Motherboard

As we explained in the introduction, an AAFP connector is used for bridging your PC Case’s front panel audio with the motherboard. AAFP is an abbreviation for Analog Audio Front Panel. This 10-1 pin header allows you to plug in the front audio cable you can find dangling inside your PC case. Once connected, it directly talks to your motherboard’s onboard audio chip.

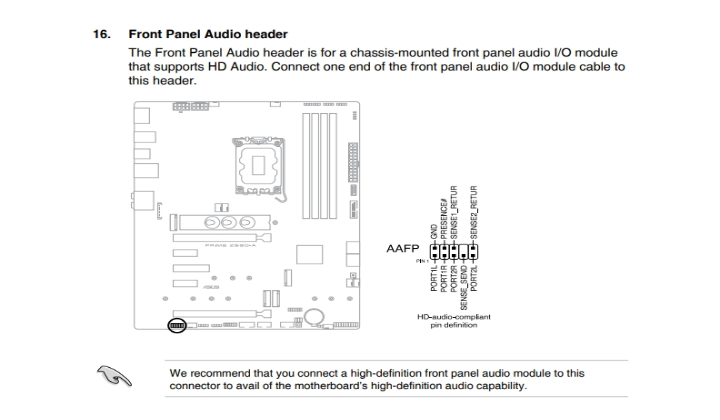

AAFP connector on motherboard - ASUS Manual
AAFP connector on the motherboard

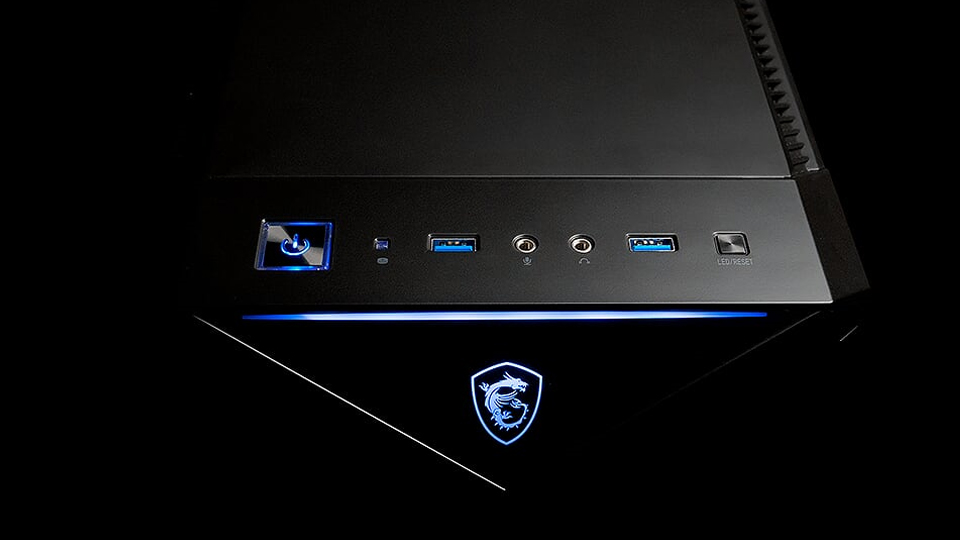

Most PC cases have an audio jack next to the power button and USB ports. This audio jack is a combination microphone and audio connector. The front audio jack only works when you plug the AAFP connector into your motherboard. It is very simple to do so, as you just need to line up the pins with the cable and plug it in. You don’t need to apply extra force, as it should slide right in without much difficulty.

Is your front audio jack not working? Try these fixes.

To sum it up, it provides you the convenience of plugging your headphones into the front of the PC case. This way, you don’t have to manage cables and find a way to plug speakers/headphones into the motherboard’s rear audio ports. While it is quite convenient, it is not exactly the best for audio quality, more on that later.

You might be wondering where this AAFP connector is located on the motherboard. Well, it’s not that hard to find. For most motherboards, it can be found near the very bottom below the PCIe slots. It’s usually right beside the main front panel connectors (power, reset, power LED, HDD LED). This could be either on the right or left side, but it’s always at the bottom.

Similar Read: Best Motherboards For Ryzen 5 5600X

The cable that you plug into this port is called an HD Audio cable. Older cases might have an AC97 cable, which is an older standard. Some cases might even offer both. Finally, there’s a chance that the connector might be labeled differently on both. It could be called “F_Audio” or “JAUD1” as well.

What’s Different with The AC97 Connector?

Both HD Audio and AC97 connectors serve the same purpose, and both of them look the same. However, they are wildly different in terms of audio quality and pinouts. They are not exactly interchangeable because of this.

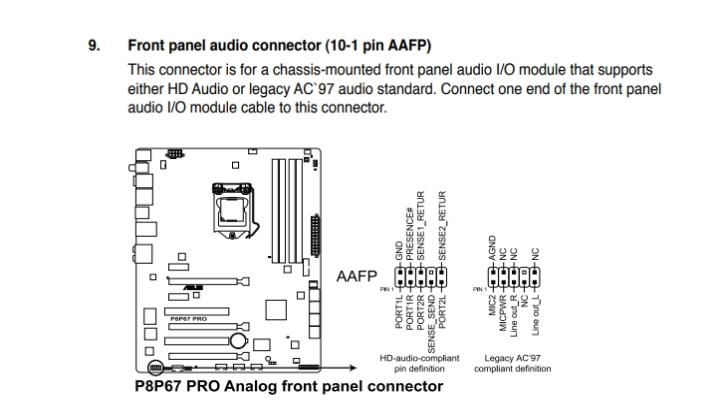

AAFP connector on motherboard - AC97 connector
AC97 vs HD Audio

In terms of audio quality, HD Audio provides a higher-quality output. HD Audio is capable of producing multi-channel audio with sample rates of up to 192KHz and up to 32-bit resolution. In contrast, AC97 supports a maximum sample rate of only 48kHz and a 20-bit resolution.

More Audio-Related content: Best Budget Stereo Amplifiers

HD Audio is the newer standard and is now more widely supported. However, you can still plug an AC97 cable into the AAFP connector on your motherboard. When you do so, just remember to go into your motherboard’s bios, find the front panel audio settings, and change the standard from HD Audio to AC97.

It’s also important to mention that AC97 is not plug-and-play most of the time. You might need to manually install drivers for this connector for it to work properly.

HD Audio is also better in terms of microphone quality. It supports a built-in mic bias voltage which helps it to perform better. To sum it up, AC97 is an older, and admittedly, worse version of HD Audio. If you have an HD Audio cable for your case, just connect that to your motherboard. If you’re stuck with AC97 and don’t have HD Audio, there’s not much you can do if you want to use the front audio jack.

Front Audio vs Rear Audio – Which Is Better?

The answer to this is quite simple. If you want the convenience of plugging your headphones directly into the front of your case, front audio is the better choice. This works out perfectly if you only occasionally use headphones and don’t care much about sound quality. However, there are obvious downsides to doing so as well.

AAFP connector on motherboard - front vs rear I/O
Rear I/O Audio Ports – Image Credit: ASUS

Front panel audio ports generally don’t use shielded cables. They also share the ground cable with the front panel USB connectors. Because of this, front-panel audio is prone to interference. You might hear a static/buzzing sound depending on how bad it is on your specific case/motherboard.

Related Roundup: The Best Bass Headphones

That’s why you’re much better off with using the audio jacks on your motherboard’s rear I/O. You’ll get better sound quality, support for a stereo speaker setup, and more flexibility in terms of the devices that you can connect. Obviously, cable management will be a bigger chore, but it’s worth the time investment. For the microphone, you can get a separate USB mic or get a USB headset.

Speaking of which, if you are only concerned with gaming, you’re better off just getting a USB headset. You don’t need to rely on motherboard audio, the microphone is built into the headset, and you avoid the mess of dealing with cables. Some gaming headsets like the Sennheiser PC38X use a 3.5mm cable, but most gaming headsets will use a USB cable for the connection.

AAFP Connector on Motherboard - FAQs

What is AAFP in motherboard?

AAFP is short for Analog Audio Front Panel. This connector is used to connect the front audio jack on your case with your motherboard.

Does HD Audio need to be plugged in?

If you want to use the front panel audio on your case, HD Audio needs to be plugged in. If not, you can leave it unplugged.

What does HD Audio do on the motherboard?

The HD Audio cable from your case plugs into the AAFP connector on your motherboard. This provides you access to the front panel audio on your case.
