Fix: Power/Battery Icon Missing Windows 10

There is a battery icon present on laptops running Windows operating system through which you can check the current status of the battery, change the brightness settings or even turn on the Battery Saver directly.

If you suddenly discover the option gone from your taskbar or it has been gone for a while now; not to worry. This cannot be a permanent issue for your computer. Either it may have been disabled from settings, or there can be some problems involved with the drivers.

Before you proceed with the workarounds listed, click on the up-arrow button on the bottom-right side of the screen to expand the taskbar. Now check if the icon is present there. If it is, click it and drag it down to the location where you want it to be.

Solution 1: Enabling the Battery icon from Settings

Windows 10 gives you the option to choose which icons you want to see on your taskbar and which icons to disable. If you haven’t seen the battery icon for quite a while on your computer, it is possible that it disabled at the settings.

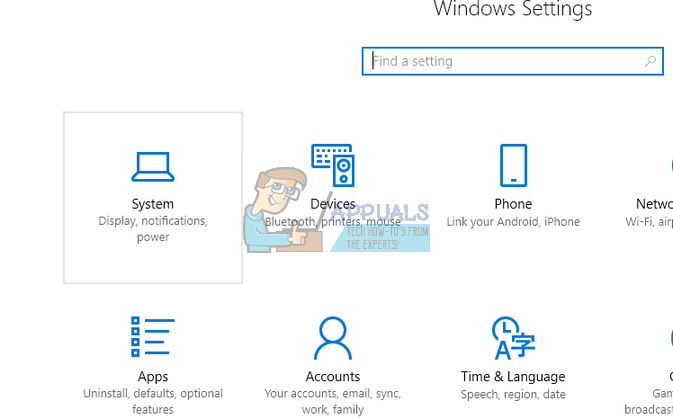

1. Press Windows + S, type “settings” in the dialogue box and open the application. Select the sub-category “System”.

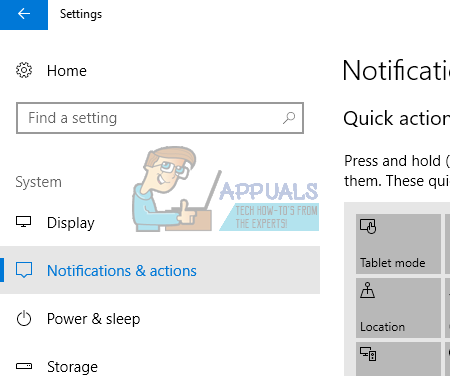

2. Now select the “Notifications and actions” section using the left navigation pane.

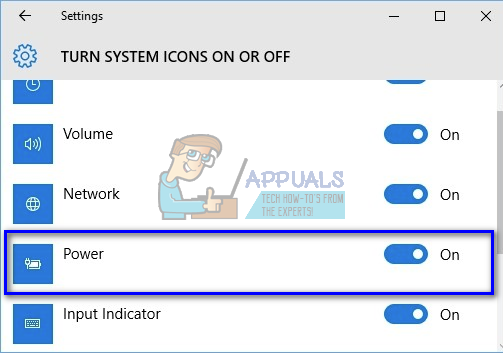

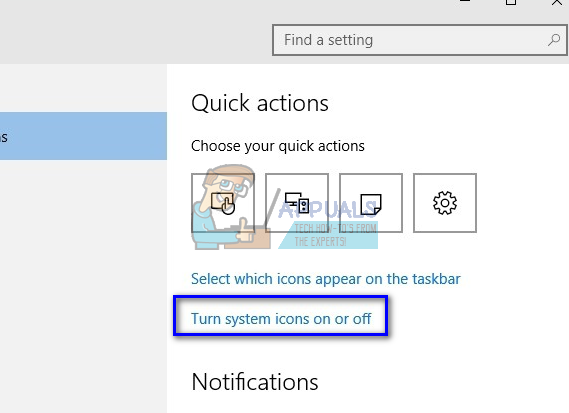

3. Click on “Turn system icons on or off” so we can check if the icon is indeed turned on.

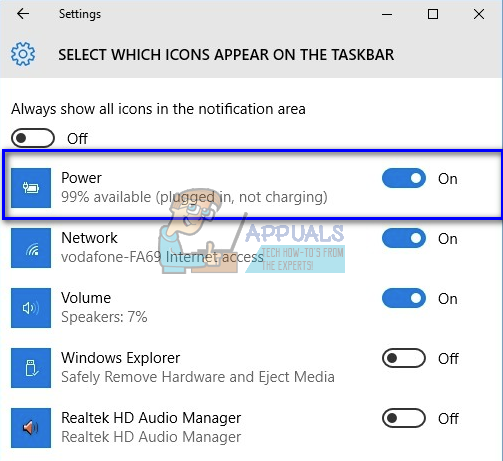

4. Make sure that the “Power” option is checked. Now we will check if it is enabled to show in the taskbar. Go back and select “Select which icons appear on the taskbar”.

5. Make sure that the Power option is enabled. After making the necessary changes, restart your computer, plug the power out of your laptop, plug it back in and turn your computer back on. Now check if the icon appeared on your taskbar.

Solution 2: Restarting Windows Explorer

If you see your power icon greyed out, we can try resetting the Windows Explorer. There were various cases where restarting the explorer fixed the problem instantly.

Note: All your current explorer windows will close down. Make sure to save all your work before proceeding.

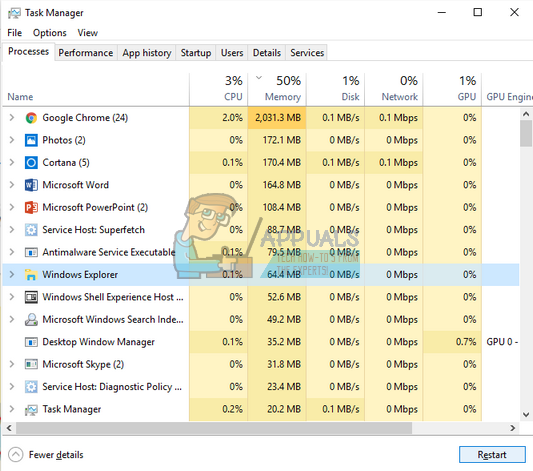

1. Press Windows + R to bring up the Run Type “taskmgr” in the dialogue box to bring up your computer’s task manager.
2. Click the “Processes” tab located at the top of the window.
3. Now locate the task of Windows Explorer in the list of processes. Click on it and press the “Restart” button present at the bottom left side of the window.

4. After restarting the explorer, check if the power icon appeared again on the taskbar.

Solution 3: Resetting AC Adapter and ACPI Compliant Control Method Battery

Advanced Configuration and Power Interface (ACPI) provides an open standard which operating systems can use to detect hardware and perform power management. It also monitors the status of your device and provides the information for other processes.

It is possible that there are some misconfigurations with this module which are leading your computer to believe there is no battery present. We can try resetting it and check if the problem at hand gets solved.

1. Press Windows + R, type “devmgmt.mscmsc” in the dialogue box and press Enter.

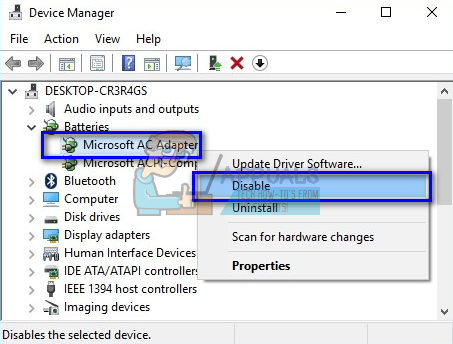

2. Expand the “Batteries” section, right-click on “Microsoft AC Adapter” and click on Disable. Do the same for “Microsoft ACPI-Compliant Control Method Battery”.

3. After disabling both the modules, re-enable them by right-clicking on them again and pressing “Enable“.
4. Now check if the icon became visible on your taskbar.

If it didn’t, you can update both of these components either manually or automatically using Windows update. If updating doesn’t do the trick either, right-click on both the modules and click “Uninstall”. After uninstalling both components, right-click on any empty space and select “Scan for hardware changes”. This should install the default drivers on both the modules.

Note: If you are seeing the battery icon with a red cross on it, it shows that Windows is detecting the component but there is some hardware fault present. It is possible that the battery plugged in your computer is damaged or it isn’t installed correctly. Turn off your computer try re-plugging the battery back in.
